FlexStat CR (Clean Room)
Product details
- SKU WHFSCR-0125-50
- Shipping Timeframe 7 to 14 days
- Low Temperature (°F) -40
- High Temperature (°F) 200
- Material Polyurethane
- Color Clear and White
- Helix Direction Left-Handed
- Handlings Fumes, Dust, and Material
- Applications Clean Room Ventilation, Coffee Bean Transfer, FDA Powder Transfer, Food Grade Applications, Pharmaceutical, Plastic Pellet Transfer, Powder & Bulk, Static Control, FDA Granular Transport, and Wood Dust Collection
Static Dissipative Clean Room Hose with Copper Grounding Wire

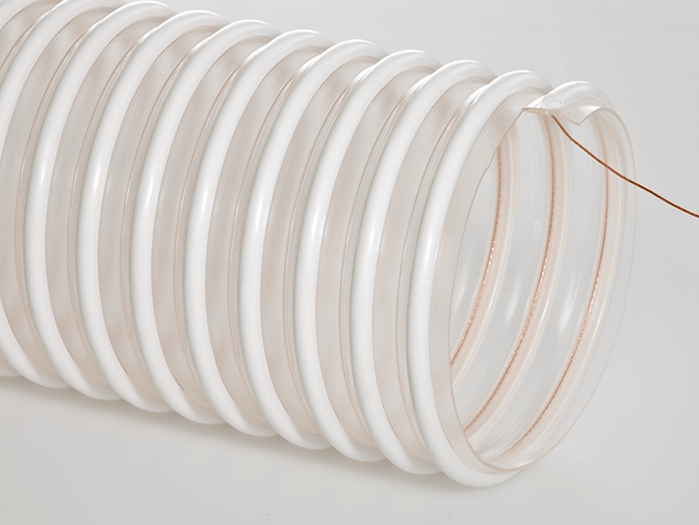

The FlexStat CR is a specially formulated clear static dissipative thermoplastic polyurethane hose reinforced with a rigid white external ABS helix and an embedded copper braided grounding wire. The dual ESD approach — permanent static dissipation in the wall material plus a copper grounding wire — delivers reliable electrostatic discharge protection for clean room and pharmaceutical environments. Surface resistivity 108–1010 Ohms/Square. Manufactured with FDA acceptable materials. Wall thickness is .040".
Where the FlexStat CR Fits
This hose is purpose-built for clean room applications, pharmaceutical powder processing, pneumatic conveying systems, FDA granular transport, food grade material handling, fume ventilation, medical applications, dust collection, and wood dust collection where both static dissipation and clean room cleanliness standards matter.
Compared to the Rest of the FlexStat Family
The CR is the clean room specialist. For general-purpose static dissipative use across a broader range of applications, the standard FlexStat Hose is the workhorse. For heavy-wall grain handling and silo severe service, the FlexStat 60 is the heavy-duty option. For railcar loading and unloading under high vacuum, the FlexStat 80 is built for that duty.
Specially formulated clear static dissipative thermoplastic polyurethane hose reinforced with a rigid white external ABS helix & an embedded copper grounding wire.
• Extremely flexible with great abrasion resistance vs. heavy walled PVC
• Smooth interior assures minimal friction loss, efficient air flow & elimination of material build-up
• Enclosed copper grounding wire reduces static build-up in material handling applications
• Permanent and non-humidity dependent ESD (electrostatic discharge) protection
• Ideal for clean room and pharmaceutical applications, powder processing and pneumatic conveying systems
• Surface Resistivity Level: 10⁸–10¹⁰ Ohms/Square
• Manufactured with FDA acceptable materials
• Wall Thickness = .040"
Hose Specifications: View, Print, or Download
Applications
The FlexStat CR is used in Clean Room, Dust Collection, FDA Granular Transport, Food Grade, Fume Ventilation, Material Handling, Medical, Polyurethane Hoses, and Wood Dust Collection.
