Which Food Grade Hose Is Right for Your Operation?

The static-safe hose for conveying fine, dry food powders

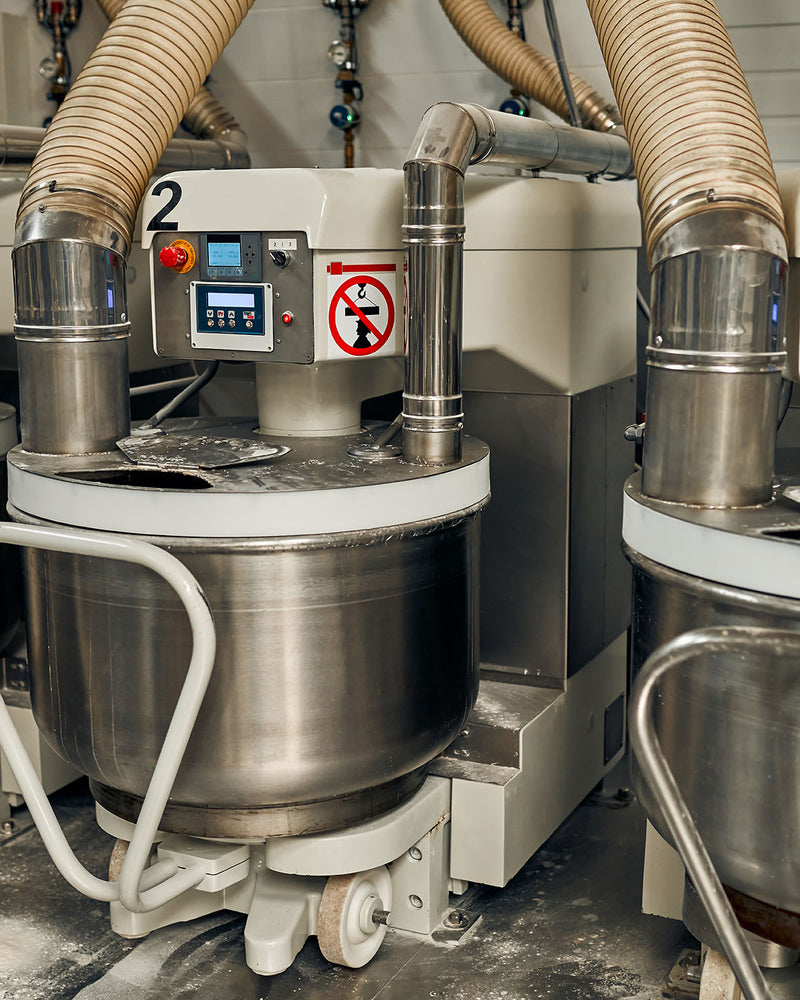

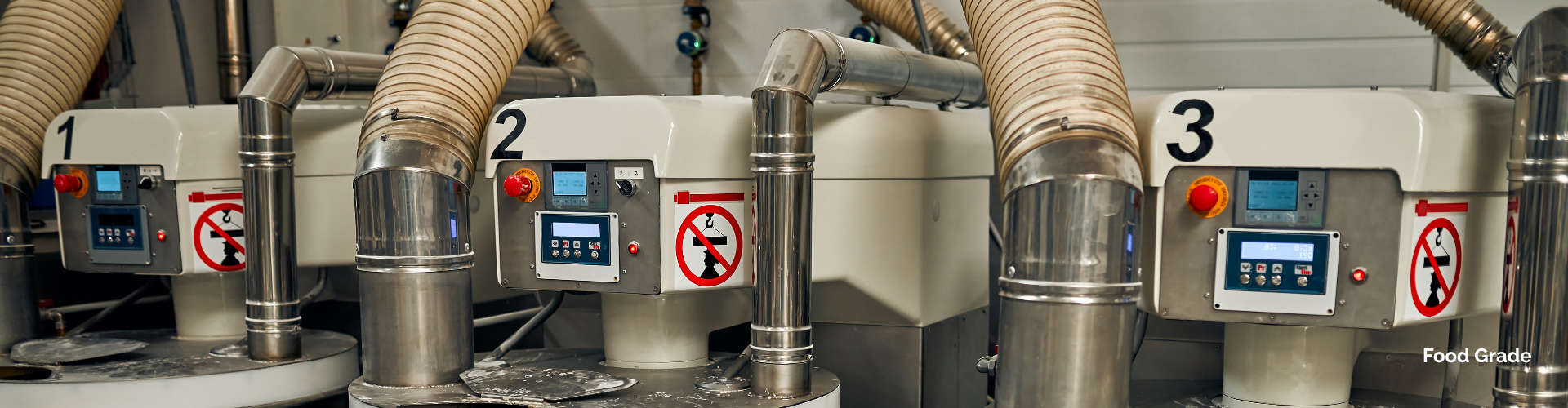

The hose that runs between your blower, receiver, or bulk handling equipment and moves fine dry ingredients through the line. Conveying flour, sugar, starch, or coffee creates static buildup — and in an enclosed powder stream that's both a product-quality and a safety concern. FlexStat is built with a specially formulated static-dissipative ABS helix and an embedded copper grounding wire for permanent, non-humidity-dependent ESD protection, so the charge has somewhere to go. Clear polyurethane wall lets you confirm flow at a glance, and it's manufactured with FDA-acceptable materials.

Best for:

• Flour, sugar, salt, starch, and cake-mix transfer (bakeries & milling)
• Green and roasted coffee bean / coffee powder transfer
• Spices, seasonings, cocoa, and drink-powder handling
• Snack, cereal, and dried dairy / whey powder lines
• Plastic resin and pellet transfer for food packaging
• Any dry-powder line where static control matters

Why this hose:

• Permanent static-dissipative protection — ABS helix plus embedded copper grounding wire
• Clear wall for at-a-glance flow confirmation
• FDA-acceptable polyurethane, rated −40°F to 200°F
• Lightweight and flexible for tight equipment routing
• Static-conductive cuffs available for grounding

Sizes 1"–8" ID. .040" wall thickness. Many sizes available.

Equipment compatibility: Connects to pneumatic conveying lines, vacuum receivers, blowers, and bulk handling equipment. Static-conductive grounding cuffs are available; fits standard screw and swivel cuffs.

The flexible, lightweight static-safe hose for dry powder lines

The lightweight static-dissipative option for dry powder and granular transfer where you need ESD protection plus easy routing. Flx-Thane LD-SD is a light-duty clear polyurethane hose with a bronze-coated spring steel wire helix and built-in static dissipation, manufactured with FDA-acceptable materials. Where FlexStat is the heavier, grounded ESD workhorse, LD-SD trades wall weight for flexibility — easier to route and handle on lighter-duty lines.

Best for:

• Lighter-duty dry powder and granular transfer that still needs static control
• Flour, sugar, starch, and fine-powder lines at moderate volume
• Flexible routing in tight equipment spaces
• Operations wanting a lightweight static-dissipative clear hose

Why this hose:

• Permanent static-dissipative ESD protection
• Lightweight and highly flexible for tight routing
• FDA-acceptable clear polyurethane, −65°F to 200°F
• Bronze-coated spring steel wire helix with good abrasion resistance
• Clear wall for at-a-glance flow confirmation

Sizes 2"–18" ID. Lightweight static-dissipative polyurethane construction. Many sizes available.

Equipment compatibility: Connects to pneumatic conveying, vacuum, and powder transfer lines. Static-conductive cuffs available for grounding.

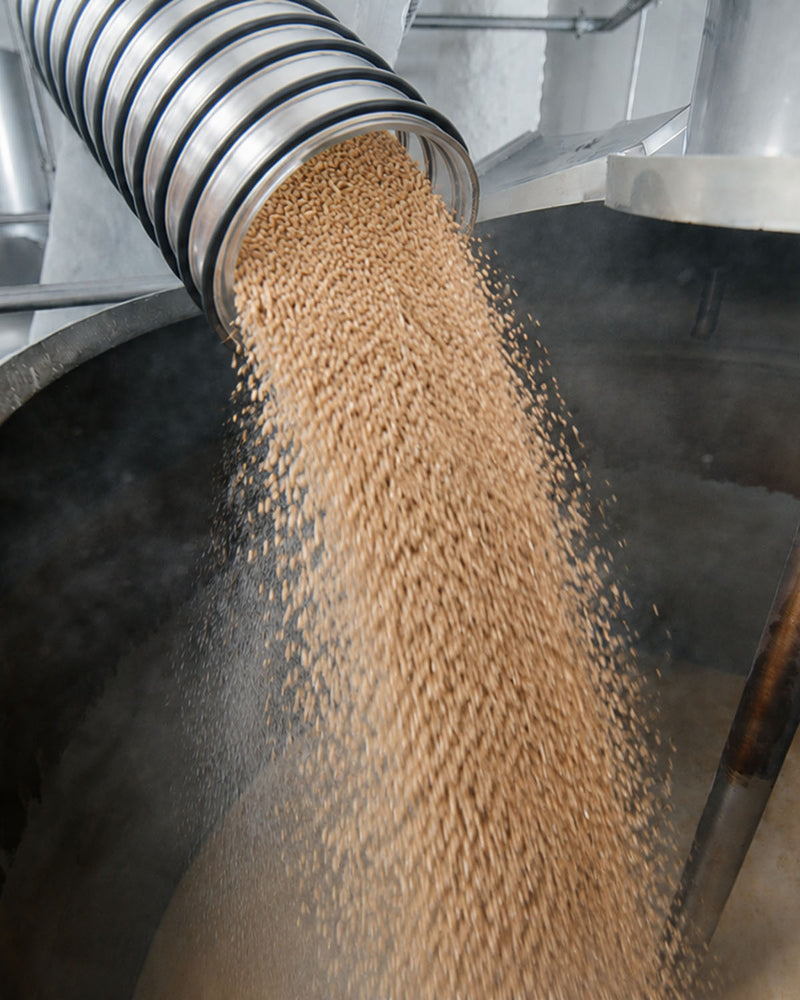

The heavy-wall workhorse for high-volume, abrasive dry bulk

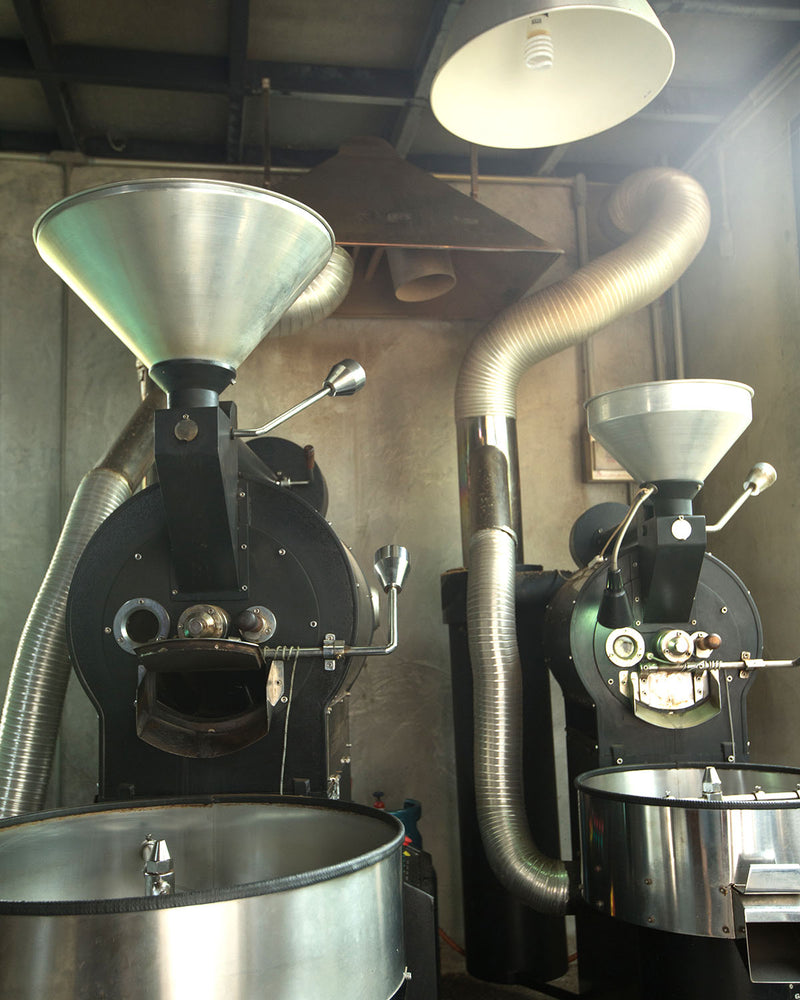

When you're moving abrasive granular product in volume — and the line takes a beating — wall thickness is what keeps the hose in service. Flx-Thane HD is a heavy-weight clear polyurethane hose with a bronze-coated spring steel wire helix, built for great abrasion resistance and high tear strength in severe-duty material handling. The clear wall is manufactured with FDA-acceptable materials, and it handles a wide temperature range from −65°F to 200°F.

Best for:

• High-volume granule and bulk ingredient transfer
• Coffee bean and abrasive-product conveying
• Pet food and kibble handling
• Sugar, grain, and dried-ingredient material handling in processing plants
• Lines where abrasion is wearing out lighter hose too fast

Why this hose:

• Heavy .045" wall for abrasion resistance and long service life
• High tear strength for severe-duty handling
• FDA-acceptable clear polyurethane
• Bronze-coated spring steel wire helix; great flexibility
• Wide temperature range, −65°F to 200°F

Sizes 2"–18" ID (custom to 24"). .045" wall thickness. Many sizes available.

Equipment compatibility: Connects to bulk transfer blowers, vacuum systems, and conveying lines. Factory-installed soft cuffs available. Also a primary pick on our Dust Collection Buying Guide for heavy workshop and severe-duty dust.

Need a lighter-duty option? For mid-volume lines that don't need the full heavy wall, the medium-wall Flx-Thane MD Clear (.030") does the same transfer at a lower price point.

The clear PVC hose for everyday powder and bulk transfer

The value-minded choice for powder and bulk transfer lines that don't need premium polyurethane. PV R-3 Clear is a heavy-weight clear PVC hose with a coated spring steel wire helix, offering excellent abrasion resistance for starch, granule, and bulk-ingredient handling at a lower entry point. The clear wall lets you watch the flow, and it's manufactured with FDA-acceptable materials.

Best for:

• Starch, granule, and powder transfer on a budget
• Bulk dry-ingredient handling where premium PU isn't required
• Dried food, grain-side, and meat-packing material lines
• Operations standardizing on clear PVC over polyurethane

Why this hose:

• Excellent abrasion resistance from a coated spring steel wire helix
• Clear FDA-acceptable PVC wall for flow visibility
• Lower-cost entry point for powder and bulk lines
• Heavy .045" wall for durability
• Rated 20°F to 160°F

Sizes 1.25"–12" ID (custom to 24"). .045" wall thickness. Many sizes available.

Equipment compatibility: Connects to dust and ventilation collectors, conveying lines, and sifters. Fits standard cuffs and clamps.

The static-safe, cleanroom-ready hose for pharma and fine-powder handling

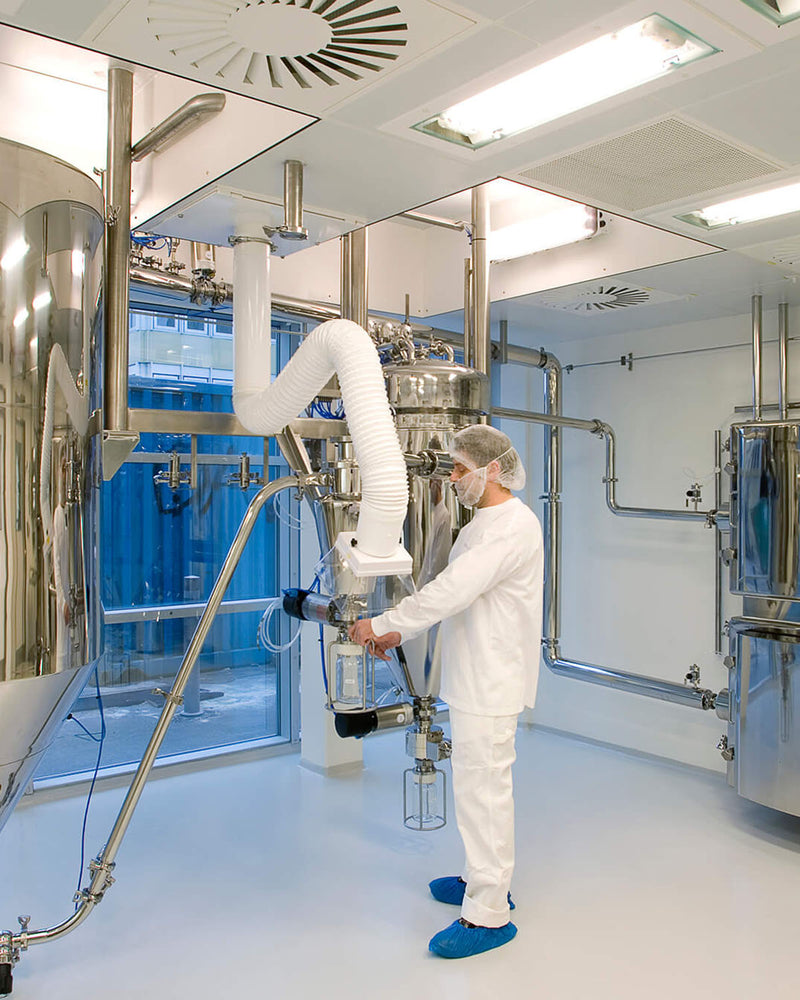

Built for the controlled environments where both contamination and static are non-negotiable — pharmaceutical, nutraceutical, and cleanroom powder and tablet handling. FlexStat CR pairs permanent, non-humidity-dependent ESD protection with a clear polyurethane wall manufactured with FDA-acceptable materials, so it's at home in clean rooms and material/plastic processing. The white helix and clear wall keep it visually clean and easy to inspect.

Best for:

• Pharmaceutical and nutraceutical powder and tablet handling
• Cleanroom material transfer
• Fine food-powder lines in controlled environments
• Plastic pellet and resin transfer where static and cleanliness both matter

Why this hose:

• Permanent static-dissipative ESD protection (ABS helix + copper grounding wire)
• Designed for cleanroom and controlled-environment use
• FDA-acceptable clear polyurethane, −40°F to 200°F
• Smooth, inspectable clear wall
• Static-conductive cuffs available

Sizes 1"–8" ID. .040" wall thickness. Many sizes available.

Equipment compatibility: Connects to cleanroom conveying, pharmaceutical blending and transfer equipment, and vacuum receivers. Static-conductive grounding cuffs available.

The economical clear hose for cleanroom and pharmaceutical handling — no static control required

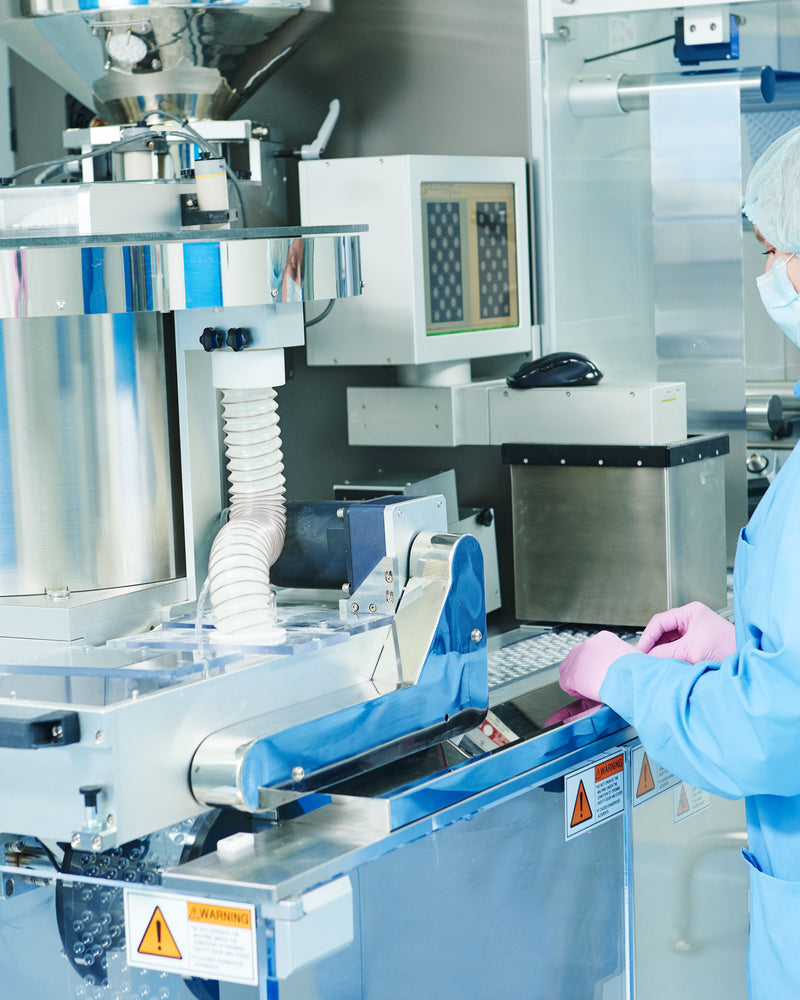

When you need a flexible, clear hose for cleanroom and light material lines — without a static-control requirement — this is the economical clear option. PV R-2 Clear is a lightweight clear PVC hose with a spring steel wire helix, offering great flexibility and tight bending for routing around equipment. The clear wall is manufactured with FDA-acceptable materials, and it's compressible for easy storage between jobs.

Best for:

• Cleanroom and pharmaceutical handling where static control isn't required
• Clear handling lines where flow visibility and easy inspection matter
• Light material movement and ventilation in pharma and food plants
• Operations wanting a flexible, lower-cost alternative to static-dissipative hose

Why this hose:

• Lightweight and highly flexible with tight bending characteristics
• FDA-acceptable clear PVC wall
• Compressible for easy handling and storage
• Rated 20°F to 160°F
• Broad size range for mixed applications

Sizes 1.25"–18" ID (custom to 24"). .020" wall thickness. Many sizes available.

Equipment compatibility: Connects to ventilation, light handling, and fume lines in food and pharma environments. Fits standard cuffs and clamps.

The FDA-grade fabric hose for clean-air venting, HEPA, and high-temperature lines

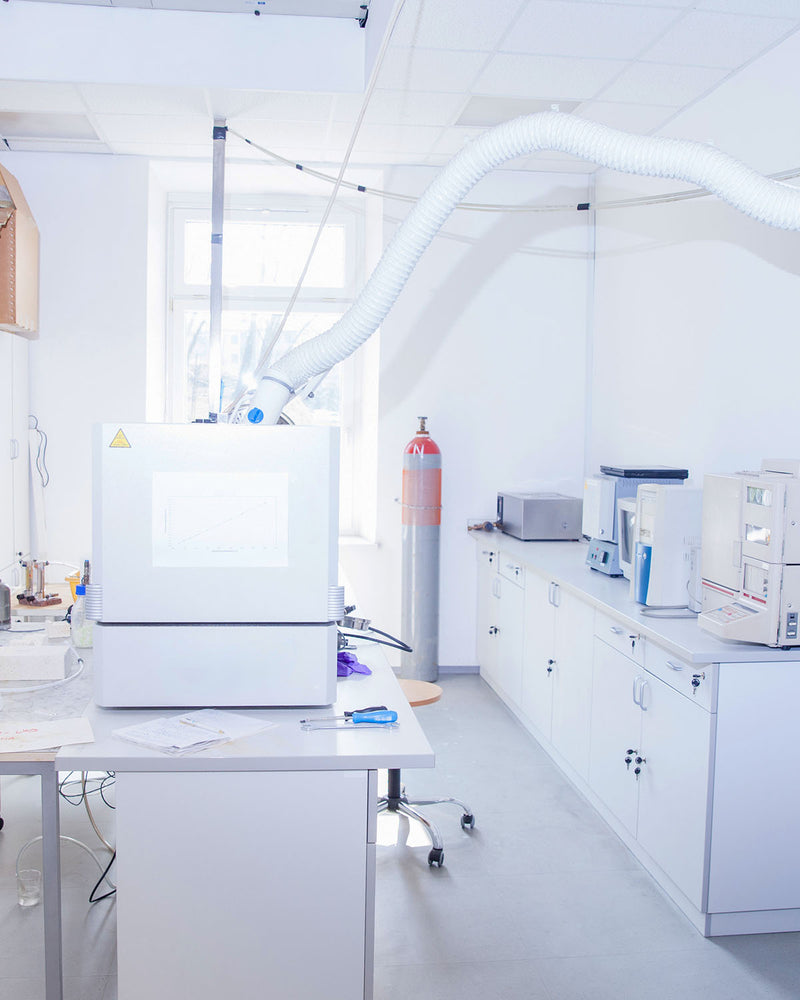

The flexible fabric hose for moving clean air — venting, HEPA filtration, and drying or process air in food and pharmaceutical plants. Where the powder and bulk hoses move product, this moves the air around it. The Flexaust White Hose is a double-ply acrylic-coated polyester fabric hose with a spring steel wire helix, manufactured with FDA-acceptable materials and rated to a wide −20°F to 325°F — well beyond what PVC or polyurethane handle — so it suits high-temperature drying, oven, and process-air lines.

Best for:

• Food-factory air venting and exhaust
• HEPA filtration connections in food and pharma plants
• Cleanroom air handling
• High-temperature drying, oven, and process air (up to 325°F)
• Lightweight air lines where fabric routes easier than rigid duct

Why this hose:

• FDA-acceptable, built for food and pharmaceutical use
• Rated −20°F to 325°F — the widest temperature range in this guide
• Double-ply acrylic-coated polyester fabric with spring steel wire helix
• Designed for cleanroom and HEPA air handling
• Efficient flow with good abrasion resistance

Sizes from 1.5" ID Coated-fabric construction. Many sizes available.

Equipment compatibility: Connects to HEPA units, air-handling and venting systems, and drying/oven air lines. Fits standard cuffs and clamps.

The lightweight clear hose for meat packing and food-handling lines

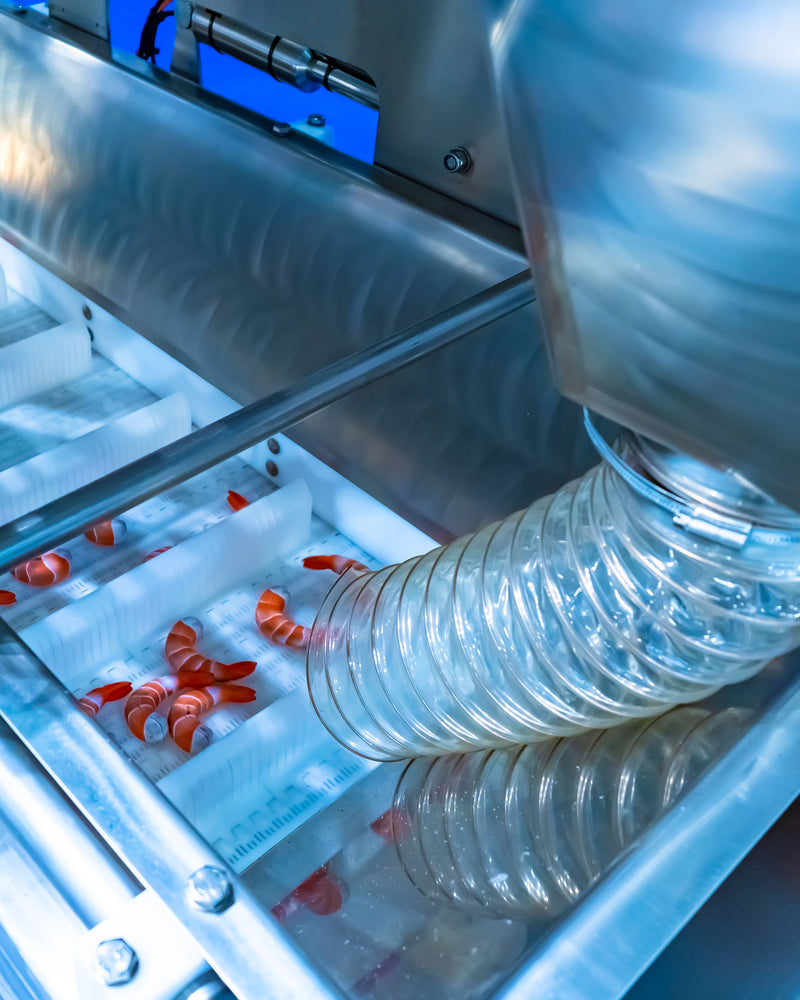

The flexible, food-grade clear hose for meat, poultry, and food-processing handling and transfer. PV R-2 Clear is a lightweight clear PVC hose with a spring steel wire helix, built with FDA-acceptable materials for food-contact environments. The clear wall lets you confirm flow and inspect for cleanliness at a glance, and it stays flexible with tight bending for routing around processing equipment. It's compressible for easy storage between jobs.

Best for:

• Meat, poultry, and fish processing transfer and handling lines
• Lightweight operations where the heavier PV R-3 is more hose than you need
• Clear food-handling lines where flow visibility matters
• Compressible, flexible routing around processing equipment

Why this hose:

• FDA-acceptable clear PVC for food-contact handling
• Lightweight and highly flexible with tight bending characteristics
• Clear wall for flow confirmation and cleaning inspection
• Compressible for easy handling and storage
• Rated 20°F to 160°F

Sizes 1.25"–18" ID (custom to 24"). .020" wall thickness. Many sizes available.

Equipment compatibility: Connects to handling, transfer, and ventilation lines in meat-packing, food, and pharma environments. Fits standard cuffs and clamps.

The heavy-wall clear hose for abrasive meat and food-processing transfer

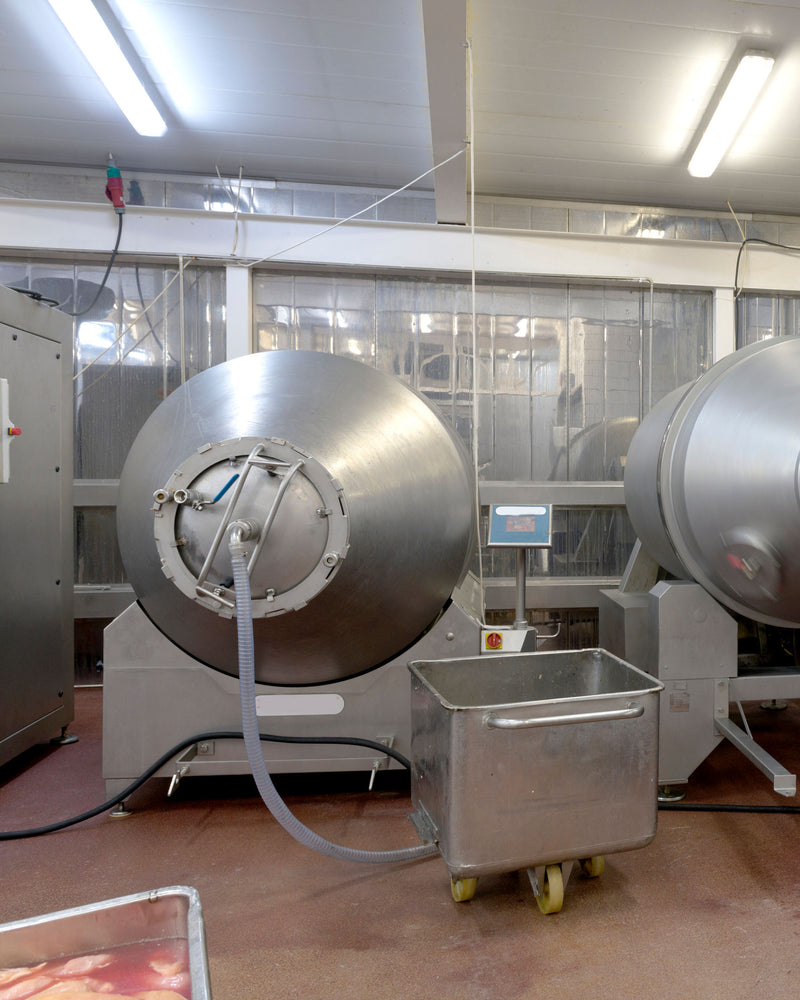

When meat, poultry, or food-processing transfer runs in volume — or the material is abrasive enough to wear out lighter hose — wall thickness is what keeps you running. PV R-3 Clear is a heavy-weight clear PVC hose with a coated spring steel wire helix, built with FDA-acceptable materials and excellent abrasion resistance for demanding food-processing lines. The clear wall lets you confirm flow and inspect for cleanliness.

Best for:

• Higher-volume meat, poultry, and food-processing transfer
• Abrasive food material and bulk ingredient handling
• Processing lines where lighter clear hose wears out too fast
• Operations standardizing on clear FDA-acceptable PVC

Why this hose:

• Heavy .045" wall and coated steel helix for abrasion resistance
• FDA-acceptable clear PVC for food-contact handling
• Clear wall for flow confirmation and cleaning inspection
• Rated 20°F to 160°F

Sizes 1.25"–12" ID (custom to 24"). .045" wall thickness. Many sizes available.

Equipment compatibility: Connects to processing transfer, handling, and conveying lines. Fits standard cuffs and clamps.
