CW-325 Hose Heat-Flex
Product details
- SKU WHCW325-02-25
- Shipping Timeframe 7 to 14 days
- Low Temperature (°F) -20
- High Temperature (°F) 325
- Material Coated Fabric
- Color Black
- Helix Direction Right-Handed
- Handlings Air and Fumes
- Applications Chemical Fume Extraction, Dry Cleaning, Drying Systems, Exhaust Systems, Flame Retardant, Fume Exhaust, Garage Exhaust, Glass Drying, Landfill Venting, Ozone, Paper Mills, Plastics Industry, Pollution Control, Vehicle Exhaust Systems, and Welding Fume Extraction
Black Acrylic-Coated Polyester Hose with UL 94V-0 Flame Retardancy

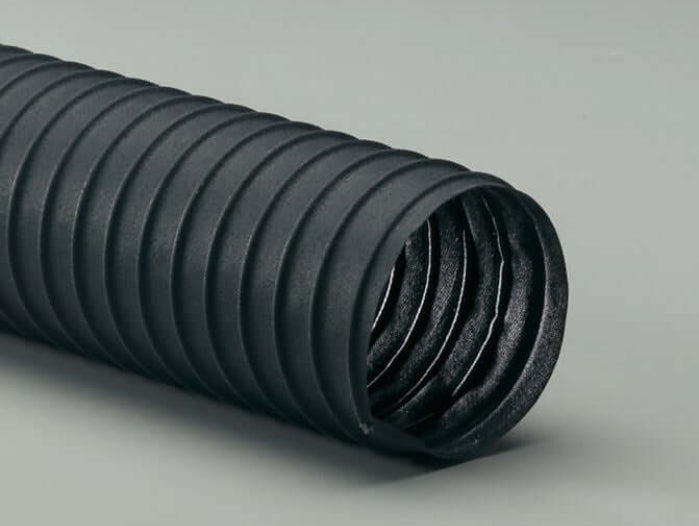

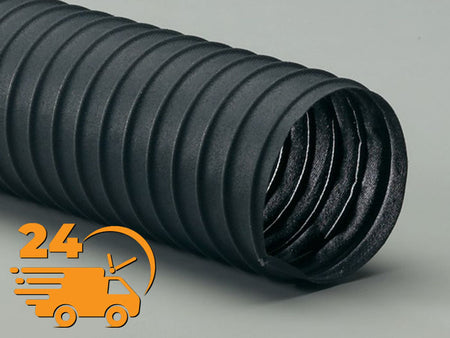

The Heat-Flex CW-325 is a single-ply black acrylic-coated polyester fabric hose reinforced with a spring steel wire helix. It is listed as UL 94V-0 flame retardant — making it a common choice for overhead vehicle exhaust extraction systems, welding fume capture, and any application where flame retardancy is a requirement. Light weight and flexible, available from 2" to 10" inside diameter (with smaller and larger sizes available on request).
Where the Heat-Flex CW-325 Fits
This hose is the right call for overhead vehicle exhaust systems, welding fume extraction, chemical fume extraction, paper mill air handling, glass drying, landfill venting, pollution control, and general fume and air handling where flame retardancy matters. Heavy use across automotive shops, manufacturing, dry cleaning, drying systems, and plastic processing.
Compared to the Rest of the Heat-Flex Line
The CW-325 is the polyester-based flame retardant option — a different construction from the silicone-coated fiberglass Heat-Flex hoses. If the application runs at high temperatures that would exceed what polyester can handle, step up to the Heat-Flex GN (neoprene-coated fiberglass, also UL 94V-0). For general high-temperature service, the Heat-Flex GS covers a broader range.
Single-ply black acrylic coated polyester fabric hose reinforced with a spring steel wire helix.
Features:
• Ideal for air & fume handling applications
• Excellent choice for overhead vehicle exhaust systems
• Light weight & flexible
• Listed as UL 94V-0 flame retardant
Hose Specifications: View, Print , or Download
Applications
The Heat-Flex CW-325 is used in Air Handling, Automotive, Chemical Fume Extraction, Coated Fabric Hoses, Construction, Dry Cleaning, Drying Systems, Flame Retardant, Fume Ventilation, Glass, Glass Drying, Landfill Venting, Manufacturing, Metal, Paper & Textile, Paper Mills, Plastic, Pollution Control, Vehicle Exhaust Systems, Ventilation, and Welding Fume Extraction.
