Heat-Flex GN
Product details
- SKU WHGN-010-12
- Shipping Timeframe 7 to 14 days
- Low Temperature (°F) -40
- High Temperature (°F) 300
- Material Coated Fabric
- Color Black
- Helix Direction Right-Handed
- Handlings Air and Fumes
- Applications A/C Ventilation, Aerospace, Brake Ducting, Cold Air Supply, Defroster/Heater, Diesel/Engine Exhaust, Flame Retardant, Heater, Injection Molding, Limo A/C Duct, Plastic Bag Machines, Safety Equipment, Smoke Ejectors, Transmission Cooling, and Ventilation
Neoprene-Coated Fiberglass Hose for Fixed High-Temperature Installations
The Heat-Flex GN is a fiberglass hose with a neoprene coating, carrying a UL 94V-0 flame retardant rating. It is built for high-temperature air handling in fixed installations — once routed, the hose stays put rather than flexing through a duty cycle. The neoprene coating adds flame retardancy and surface protection on top of the fiberglass core's high-temperature capability, making it a common fit in automotive, plastic processing, and ventilation applications where flame retardancy is required.
Where the Heat-Flex GN Fits
This hose is used in A/C and portable cooling runs, automotive exhaust and ventilation, brake ducting for cooling and ventilation, cold air supply routing, fume ventilation, heater and defroster lines, injection molding and plastic processing air handling, limo A/C ducting, smoke ejector operations, transmission cooling, vehicle exhaust systems, and general hot/cold air transfer where UL 94V-0 flame retardancy matters.
Important: Not for Constant Flexing
The GN is built for static installations. If the hose will see constant flexing or movement during use, the Heat-Flex NS is the Nomex-reinforced version built for that duty. For broader general-service high-temperature work, the Heat-Flex GS covers more applications.
Description:

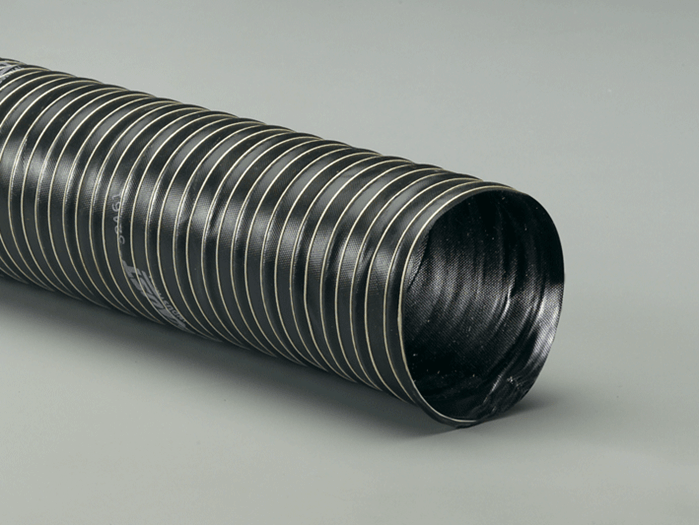

Double-ply black neoprene coated fiberglass fabric hose reinforced with a spring steel wire helix & external filament fiberglass cord.
Features:
• Offers higher temperature characteristics than traditional neoprene hoses
• The narrow pitch allows for tight bending radius while maintaining a smooth air flow
• Flame retardant to UL 94V-0
• Non-kinking
• Not recommended for continuous flexing
Hose Specifications: View, Print, or Download
Applications
The Heat-Flex GN is used in A/C and Cooling, Air Handling, Automotive, Brake Ducting, Coated Fabric Hoses, Cold Air Supply, Flame Retardant, Fume Ventilation, Heater and Defroster, Hot/Cold Air Transfer, Injection Molding, Limo A/C Duct, Plastic Applications, Smoke Ejector, Transmission Cooling, Vehicle Exhaust Systems, and Ventilation.
